Extending & Developing¶

JSON Schemas for configuration files¶

Starting with uniport-gateway version 8.0.0, we provide JSON schemas that can be used to validate your configuration files.

Usage¶

There are two JSON schemas, uniportGatewayStaticSchema.json for the static and uniportGatewayDynamicSchema.json for the dynamic configuration file. Both files are included in the following artifact:

<dependency>
    <groupId>ch.uniport.gateway</groupId>
    <artifactId>config-schemas</artifactId>
    <version>${uniport-gateway.version}</version>
</dependency>

You can either manually extract schemas, or use a maven plugin to automate their extraction (for example, maven-depedency-plugin).

Helpful links¶

Code Quality¶

The Uniport project applies various code quality tools to maintain a clean codebase at all times. The aim is to achieve a consistent format across the entire codebase, adhere to high Java coding standards, and detect bugs through static analysis. To this end, various tools are employed to enable easy integration of code quality tools into the Uniport team's workflow and to automate code quality checks.

The code quality tool settings are managed in a central repository (code-style-settings) and pulled in by individual projects.

Warning

The Uniport team must be informed of any changes to the global settings in the central repository.

Formatting¶

The Eclipse Code Formatter is used for consistent source code formatting. There are plugins available for various IDEs to automatically apply the format:

IntelliJ: Adapter for Eclipse Code Formatter
VSCode: Redhat Java

To ensure that source code is automatically formatted with every mvn install and can be checked for correct formatting before a commit, the Spotless Maven Plugin by diffplug is used. Additionally, this plugin can not only format Java files with the Eclipse Code Formatter but also JSON and Pom files. Furthermore, similar to the well-known editorconfig, it can also apply simple formatting (such as indentation, spaces vs. tabs, trimming trailing whitespaces, etc.) to text-based files.

Formatting is applied before each compilation of the source code. By default, only dirty files are formatted and checked. This prevents the entire codebase from showing a diff for a small feature.

Tip

Spotless formatting can be performed manually with mvn spotless:apply.

As already mentioned, formatting is checked with every commit. For this, another Maven plugin is used, which installs a Pre-Commit Hook. More on this can be found in the Pre-Commit Hooks chapter.

Tip

Since each project can contain special files that should not be formatted, or files that are not automatically formatted by the shared configuration, this can be set per project. The configuration of the Spotless Maven Plugin includes <includes> and <excludes> tags to achieve this exact individual configuration.

Spotless Plugin Configuration

The used configuration of the Spotless Maven Plugin:

<plugin>
    <groupId>com.diffplug.spotless</groupId>
    <artifactId>spotless-maven-plugin</artifactId>
    <version>2.35.0</version>
    <configuration>
        <ratchetFrom>origin/main</ratchetFrom>
        <formats>
            <format>
                <includes>
                    <include>**/*.md</include>
                    <include>.gitignore</include>
                    <include>.jenkins/Jenkinsfile.build</include>
                </includes>

                <trimTrailingWhitespace/>
                <endWithNewline/>
                <indent>
                    <spaces>true</spaces>
                    <spacesPerTab>4</spacesPerTab>
                </indent>
            </format>
        </formats>
        <java>
            <includes>
                <include>**/src/main/java/**/*.java</include>
                <include>**/src/test/java/**/*.java</include>
            </includes>

            <importOrder/>
            <removeUnusedImports/>

            <eclipse>
                <file>${maven.multiModuleProjectDirectory}/.code-style-settings/portal-java-formatter.xml</file>
            </eclipse>
        </java>
        <pom>
            <includes>
                <include>**/pom.xml</include>
            </includes>
            <sortPom>
                <nrOfIndentSpace>4</nrOfIndentSpace>
                <expandEmptyElements>false</expandEmptyElements>
            </sortPom>
        </pom>
        <json>
            <includes>
                <include>**/*.json</include>
            </includes>

            <gson>
                <version>2.8.1</version>
                <indentSpaces>4</indentSpaces>
                <sortByKeys>false</sortByKeys>
            </gson>
        </json>
    </configuration>
    <executions>
        <execution>
            <goals>
                <goal>apply</goal>
            </goals>
            <phase>process-sources</phase>
        </execution>
    </executions>
</plugin>

Coding Standard¶

To maintain a high Java Coding Standard, the Checkstyle Tool is used. Here too, there are plugins available for various IDEs to display suggestions directly in the source code:

IntelliJ: Checkstyle-IDEA
VSCode: VSCode Checkstyle

Tip

Checkstyle checks can be performed manually with mvn checkstyle:check.

Here too, a Pre-Commit Hook ensures that no coding standards are violated.

Tip

If there's a desire to ignore individual Checkstyle rules, this can be configured either via the global suppressions.xml in the central repository or even per project via suppressions-specific.xml.

Checkstyle Plugin Configuration

The used configuration of the Checkstyle Maven Plugin:

<plugin>
    <artifactId>maven-checkstyle-plugin</artifactId>
    <version>3.2.1</version>
    <configuration>
        <consoleOutput>true</consoleOutput>
        <configLocation>${maven.multiModuleProjectDirectory}/.code-style-settings/checkstyle/config.xml</configLocation>
        <suppressionsLocation>${maven.multiModuleProjectDirectory}/.code-style-settings/checkstyle/suppressions.xml</suppressionsLocation>
    </configuration>
    <dependencies>
        <dependency>
            <groupId>com.puppycrawl.tools</groupId>
            <artifactId>checkstyle</artifactId>
            <version>10.7.0</version>
        </dependency>
    </dependencies>
</plugin>

Static Analysis for Bug Detection¶

Static analysis of the source code takes place in the project's build pipeline and is performed by the Spotbugs Maven Plugin. The detected bugs are also listed in a separate report, which is available in the build pipeline overview.

Spotbugs Plugin Configuration

The used configuration of the Spotbugs Maven Plugin:

<plugin>
    <groupId>com.github.spotbugs</groupId>
    <artifactId>spotbugs-maven-plugin</artifactId>
    <version>4.7.3.2</version>
    <configuration>
        <failOnError>false</failOnError>
        <xmlOutput>true</xmlOutput>
        <excludeFilterFiles>
            <excludeFilterFile>${maven.multiModuleProjectDirectory}/.code-style-settings/spotbugs/exclude.xml</excludeFilterFile>
            <excludeFilterFile>${maven.multiModuleProjectDirectory}/.code-style-settings/spotbugs/exclude-specific.xml</excludeFilterFile>
        </excludeFilterFiles>
    </configuration>
</plugin>

Pre-Commit Hooks¶

Git Hooks are a local setting and are not pushed upstream. Therefore, a separate plugin is needed here, which in this case installs the Pre-Commit Hooks. The Git Build Hook Maven Plugin is used, which only expects a path to a file that should be executed as a Pre-Commit Hook. The file is a Bash script and contains only the two commands already discussed in the preceding two sections:

mvn spotless:check \
    checkstyle:check

It should be noted here that when applying the Pre-Commit Hook, committing may take a few seconds longer for the two checks to be executed. Furthermore, it is only possible to commit something if both checks have been successfully completed.

Git Build Hook Plugin Configuration

The used configuration of the Git Build Hook Maven Plugin:

<plugin>
    <groupId>com.rudikershaw.gitbuildhook</groupId>
    <artifactId>git-build-hook-maven-plugin</artifactId>
    <version>3.4.1</version>
    <configuration>
        <installHooks>
            <pre-commit>.code-style-settings/hooks/pre-commit</pre-commit>
            <pre-push>.code-style-settings/hooks/pre-push</pre-push>
        </installHooks>
    </configuration>
    <executions>
        <execution>
            <goals>
                <goal>install</goal>
            </goals>
            <phase>install</phase>
        </execution>
    </executions>
</plugin>

Authorization¶

In the authorization package, there a multiple middlewares implemented that share functionality:

bearerOnly - validate and check claims of a JWT provided as a bearer token in an authorization header
passAuthorization - validate and check claims of a JWT stored in a session scope, ensuring the authorization header is the same for the incoming request and the outgoing request (required for the Keycloak admin UI)
checkJwt - validate and check claims of a JWT provided in the session scope
authorizationBearer - put a JWT in the authorization header as a bearer token from a session scope

As for all middleware, the have to implement Middleware and MiddlewareFactory interface. Further, they do not implement Middleware directly, but inherit from TraceMiddleware for automatic trace span handling per middleware. So far, this is the standard for every middleware.

There are various components shared, such as:

capability to verify multiple issuers (JWTAuthMultipleIssuersProvider)
capability to verify custom claims (JWTAuthAdditionalClaimsHandler)
(periodically) fetch public keys from the issuer signature verification (JWTAuthPublicKeysReconcilerHandler/Impl)
load and store JWTs in the session scope (SessionScopeAuthTokenLoader)

To glue that all together, including the config schema and config validation,

bearerOnly, passAuthorization and checkJwt the middleware factories inherit from WithAuthHandlerMiddlewareFactoryBase.
authorizationBearer and JWTAuthAdditionalClaimsHandler (via JWTAuthTokenLoadHandler) use SessionScopeAuthTokenLoader

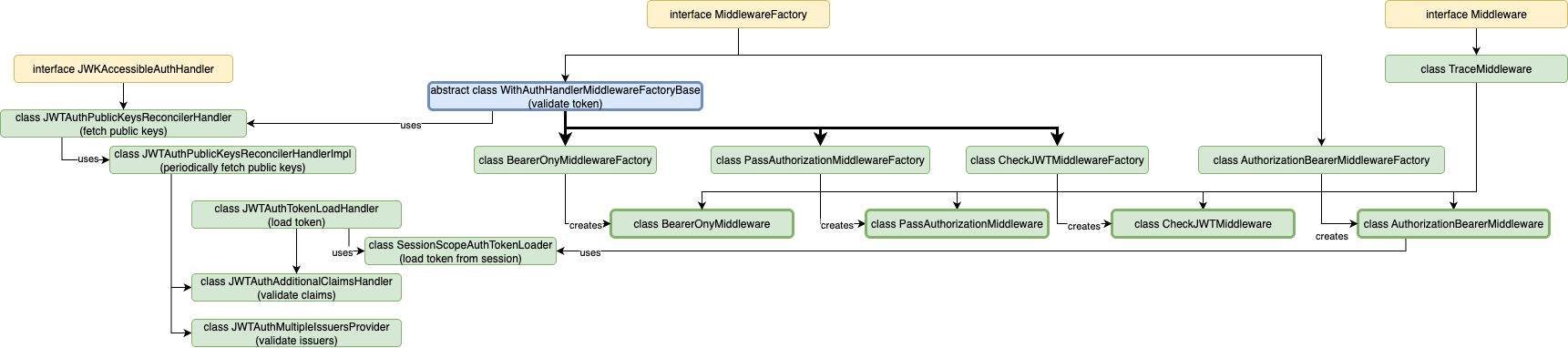

The following image visualizes how the components are connected. Note that only custom components are shown and Vert.x components are omitted:

Classes Overview

Custom middleware implementations¶

Custom middleware implementations provided in a additional JAR can be dynamically loaded by the Uniport-Gateway. For this the middleware has to implement the interfaces MiddlewareFactory,MiddlewareOptionsModel and Middleware that are provided as part of the api package:

MiddlewareFactory: The entrypoint that glues everything together like type, config JSON schema, validation, config model and creation of the middleware. MiddlewareOptionsModel: For mapping the validated JSON config onto Java classes aka models. Middleware: For the actual middleware implementation handling requests.

The JAR also has to contain a META-INF/services/ch.uniport.gateway.proxy.middleware.MiddlewareFactory file with the fully-qualified path to the middleware factory implementation.

See extensions/src/main/java/ch/uniport/gateway/extensions/middleware/example for a simple example.
